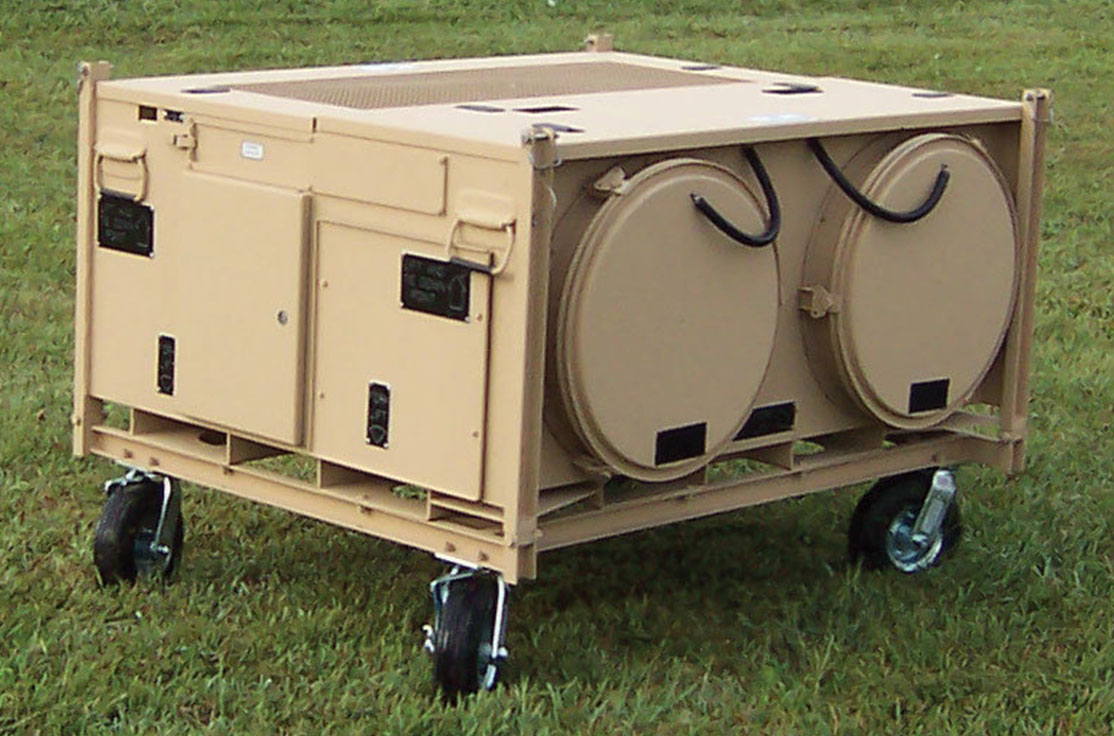

5 and 6 ton Basic ECUs

The 5 and 6 ton Basic ECUs are specificallly designed to cool or heat deployalble shelters.

The 5 Ton Basic provides 17.6 kW (60,000 BTU/H) of cooling using less than 2.99 kg of environmentally acceptable, ozone-friendly R-407C refrigerant. The unit is also available with a turf cart.

The 6 Ton Basic ECU provides an efficient 72,000 BTUs (21.1 kW) of cooling using ozone-friendly R4O7C refrigerant. This skid-based unit is equipped with 16″ (40.6 cm) supply and return air ducts and a five-position selector switch. Modes of operation include ON-VENT-COOL-HEAT-AUTO. These units are also available with a turf cart.

Features include:

  • Environmentally acceptable R-407C refrigerant
  • Hot gas by-pass
  • Five position selector switch (OFF-VENT-COOL-HEAT-AUTO) with a thermostat to monitor return air temperature
  • CARC paint system
  • Designed for ease of transport, stacked four units high, 16 units will fit on a single 463L pallet (4 stacks by 4 high), without the turf cart installed

Download Datasheet: 5 and 6 ton Basic ECU
